Reinforcement bar Couplers, weldable coupler connecting bars

    Buy cheap Reinforcement bar Couplers, weldable coupler connecting bars from wholesalers

    Buy cheap Reinforcement bar Couplers, weldable coupler connecting bars from wholesalers
    • Buy cheap Reinforcement bar Couplers, weldable coupler connecting bars from wholesalers

    Reinforcement bar Couplers, weldable coupler connecting bars

    Ask Lasest Price
    Brand Name : Longquan
    Certification : ISO9001:2008
    Model Number : LQ-076
    Price : Ask LQ
    Delivery Time : 20 days
    Payment Terms : T/T; L/C
    Supply Ability : Large Qty.
    • Product Details
    • Company Profile

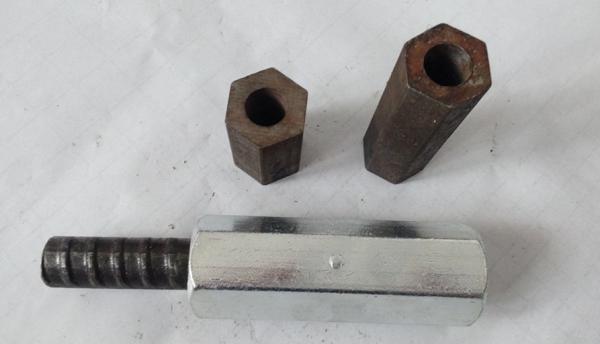

    Reinforcement bar Couplers, weldable coupler connecting bars

    Steel Hex. nuts, Hexagonal nut with stop pin, bar coupler, connecting nuts, square nuts

    Article No.Bar Ø
    (mm)
    Length
    (mm)
    Hex
    (mm)
    Weight
    (kg)
    LQ-076/30-151530300.15
    LQ-076/50-151550300.22
    LQ-076/70-151570300.30
    LQ-076/30-202030360.16

    LQ-076/70-20

    LQ-076/110-20

    20

    20

    70

    110

    41

    36

    0.60

    0.64

    Cast, galvanized; Customized size available.
    For barØ15, working load 90KN to DIN 18216, breaking load>190KN
    For barØ20, working load 150KN to DIN 18216, breaking load>350KN
    Hex Nut L=30 are for securing connection, not for taking bar load.

    Material: Carbor steel

    We, Hebei Longquan Industry Co., Ltd. (formworkparts), are the manufacturer of formwork parts and scaffolding accessories from China. We mainly supply wing nuts, tie rod, water stop, hex. nuts, bar couplers, rapid clamps, frame formwork clamps, jack base, U head jack, prop nuts, prop sleeves, and other scaffolding fittings.
